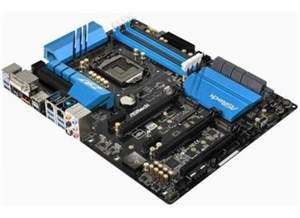

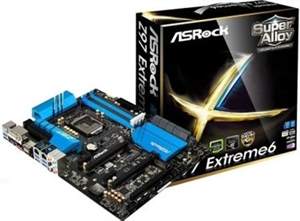

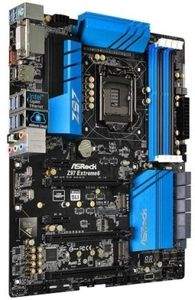

ASRock Z97 Extreme6 Motherboard

Name: ASRock Z97 Extreme6 Motherboard
Brand: ASRock Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

ASRock Z97 Extreme6 Motherboard Share on

ASRock Motherboards

₹25847.00

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

ASRock Z97 Extreme6 Motherboard Specifications

In The Box

Sales Package

Motherboard, Manuals

General

Brand	ASRock
Model ID	Z97 Extreme6

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel 5th Generation Core i7 Processor, Intel 5th Generation Core i3 Processor, Intel Celeron Processor, Intel 5th Generation Core i5 Processor, Intel New 4th Generation Core i3 Processor, Intel New 4th Generation Core i5 Processor, Intel 4th Generation Xeon Processor, Intel 4th Generation Core i7 P...View More Intel 5th Generation Core i7 Processor, Intel 5th Generation Core i3 Processor, Intel Cele
Chipset	Intel Z97
Chipset Manufacturer	Intel

Connectivity

Ethernet Controller

Realtek RTL8111GR, Intel I218 V

Ethernet Features

1 x Gigabit LAN Controller 10/100/1000 Mbps, PCIE x 1 Gigabit LAN 10/100/1000 Mbps, Supports Intel Remote Wake Technology (on Intel I218 V), Supports Wake-On-WAN (on Realtek RTL8111GR), Supports Wake-On-LAN, Supports Lightning / ESD Protection (ASRock Full Spike Protection), Supports LAN Cable Detec...View More 1 x Gigabit LAN Controller 10/100/1000 Mbps, PCIE x 1 Gigabit LAN 10/100/1000 Mbps, Suppor

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	2400 (OC) MHz, 2133 (OC) MHz, 1866 (OC) MHz, 2933 (OC) MHz, 1066 MHz, 1600 MHz, 1333 MHz, 3200+ (OC) MHz, 2800 (OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

RAID Controller	Intel Z97
RAID Configurations	0, 1, 5, 10

Audio

Audio Codec	Realtek ALC1150
Audio Channels	7.1
Audio Features	High Definition Audio with Content Protection, Premium Blu-ray Audio Support, Supports Surge Protection (ASRock Full Spike Protection), Supports Purity Sound 2, Nichicon Fine Gold Series Audio Caps, 115 dB SNR DAC with Differential Amplifier, TI NE5532 Premium Headset Amplifier (Supports Upto 600 oh...View More High Definition Audio with Content Protection, Premium Blu-ray Audio Support, Supports Sur

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Supports AMD Quad CrossFireX and CrossFireX, Supports NVIDIA Quad SLI and SLI

Expansion Slots

PCIe x1 Slots, Generation	2, 2.0
Mini PCIe Slots	1
PCIe x16 Slots, Generation	2.0, 3.0 and 1, 2

Internal I/o Headers

ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
SATA 6 Gb/s Headers	3
USB 2.0 Headers	3
USB 3.0 Headers	2
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Thunderbolt AIC Connector, 1 x SATA Express 10 Gb/s Connector, 1 x HDD Saver Connector, 1 x Vertical Type A USB 2.0, CPU Fan Connectors (1 x 4-pin, 1 x eSATA Connector by ASMedia ASM1061, 1 x Power Switch with LED, 1 x BIOS Selection Switch, 1 x Ultra M.2 Socket (M2_1), 1 x 3-pin), 1 x Dr. Debug...View More 1 x Thunderbolt AIC Connector, 1 x SATA Express 10 Gb/s Connector, 1 x HDD Saver Connector

Back Panel Ports

USB 3.0 Ports, Controller	6
DVI Ports	1
HDMI Ports	1
Audio I/O Channels	5
RJ-45 Ethernet Jacks	2
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
PS/2	1
Other Ports	1 x Clear CMOS Switch, HD Audio Jacks: Rear Speaker, Central, Bass, Line in, Front Speaker, Microphone, 1 x Display Port 1.2

General Features

Overclocking	Supports ASRock BCLK Full-range Overclocking
Hardware Monitoring	CPU/Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan (Auto Adjust Chassis Fan Speed by CPU Temperature), CPU/Chassis Fan Multi-speed Control, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Input Voltage, CPU Internal Voltages
OS Support	8.1 (32-bit, 8, 64-bit), Microsoft Windows: 7
Support CDs	Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 Days Trial), Orbweb.ME Professional
BIOS	2 x 64 Mb AMI UEFI Legal BIOS with Multilingual GUI Support (1 x Main BIOS and 1 x Backup BIOS), Supports Secure Backup UEFI Technology, ACPI 1.1 Compliant Wake Up Events, SMBIOS 2.3.1 Support, CPU, DRAM, PCH 1.05 V, PCH 1.5 V Multi-adjustment, UEFI: ASRock Full HD UEFI, ASRock My Favorites in UEFI,...View More 2 x 64 Mb AMI UEFI Legal BIOS with Multilingual GUI Support (1 x Main BIOS and 1 x Backup
Features	ASRock Cloud, 12 Power Phase Design, Intel Clear Video HD Technology, Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, ASRock Ultra M.2 (PCIe Gen3 x 4), ASRock HDD Saver Technology, Intel Insider, ASRock Super Alloy, Intel HD Graphics 4400 / 4600, Maximum Shared Memory 1792 MB,...View More ASRock Cloud, 12 Power Phase Design, Intel Clear Video HD Technology, Intel Quick Sync Vid
Advanced Technologies	Supports Intel Turbo Boost 2.0 Technology, Supports Intel K-Series Unlocked CPUs, Intel Rapid Storage Technology 13 and Intel Smart Response Technology
Advanced Features	Digi Power Design, Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2, Supports HDMI with Maximum Resolution Upto 4K x 2K (4096 x 2304) at 24 Hz, Supports Display Port 1.2 with Maximum Resolution Upto 4K x 2K (4096 x 2304) at 24 Hz or 4K x 2K (3840 x 2160) at 60 Hz

Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
