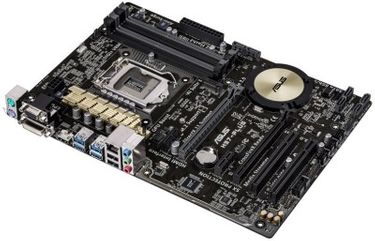

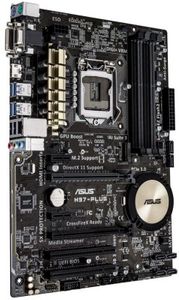

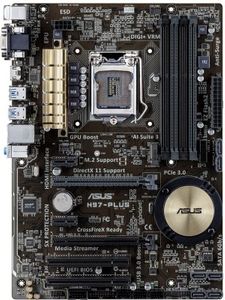

ASUS H97-PLUS Motherboard

Name: ASUS H97-PLUS Motherboard
Brand: Asus Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

ASUS H97-PLUS Motherboard Share on

Asus Motherboards

₹21021.00

₹21021.00

Go to store

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

Asus H97-PLUS Motherboard Specifications

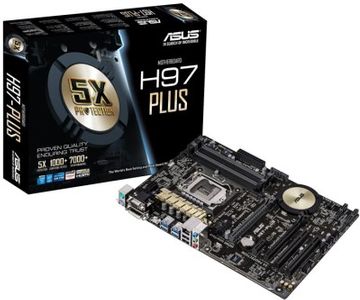

In The Box

Sales Package

Users Manual, I/O Shield, 2 x SATA 6 Gb/s Cables

General

Brand	Asus
Model ID	H97-PLUS

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel 4th Generation Core i7 Processors, Intel Celeron Processors, Intel New 4th Generation Core i7 Processors, Intel 4th Generation Core i5 Processors, Intel 5th Generation Core i7 Processors, Intel New 4th Generation Core i5 Processors, Intel 5th Generation Core i3 Processors, Intel New 4th Genera...View More Intel 4th Generation Core i7 Processors, Intel Celeron Processors, Intel New 4th Generatio
Chipset	Intel H97
Chipset Manufacturer	Intel

Connectivity

Ethernet Controller	Realtek 8111GR
Ethernet Features	1 x Gigabit LAN

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 GB DDR3 Dual Channel DIMM
Memory Frequency	1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	No

Storage

SATA 6 Gb/s	Intel H97
RAID Controller	Intel H97
RAID Configurations	0, 1, 5, 10

Audio

Audio Codec	Realtek ALC887
Audio Channels	8
Audio Features	High Definition Audio CODEC Featuring Crystal Sound 2, Supports: Jack-detection, Front Panel Jack-retasking

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, Supports AMD Quad-GPU CrossFireX Technology

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	1, 3.0, 2.0

Internal I/o Headers

ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
SATA 6 Gb/s Headers	6
USB 2.0 Headers	3
USB 3.0 Headers	1
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x S/PDIF Out Header, 1 x CPU Fan Connector (1 x 4-pin), 1 x 24-pin EATX Power Connector, 2 x Chassis Fan Connectors (2 x 4-pin), 1 x Clear CMOS Jumper, Type 2260 / 2280 Devices, 1 x M.2 Socket 3 for M Key, 1 x Front Panel Audio Connector (AAFP), 1 x System Panel

Back Panel Ports

USB 2.0 Ports, Controller	2
VGA/D Sub Ports	1
USB 3.0 Ports, Controller	4
DVI Ports	1
Audio I/O Channels	3
HDMI Ports	1
RJ-45 Ethernet Jacks	1
PS/2	2
Other Ports	1 x DVI-D

General Features

OS Support	Windows: 7, 8.1, 8
Support CDs	Drivers, Asus Utilities, EZ Update, Anti-virus Software (OEM Version)
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, Asus EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen Function, F3 Shortcut Function, and Asus DRAM SPD (Serial Prese...View More 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, Multi-langua
Features	Asus ESD Guards - Enhanced ESD Protection, Asus EPU, Ai Charger, Crystal Sound 2, Asus 5X Protection: Asus DIGI+ VRM - 4 Phase Digital Power Design, Asus Enhanced DRAM Overcurrent Protection - Short Circuit Damage Prevention, Asus High-Quality 5 K - Hour Solid Capacitors - 2.5x Long Lifespan with Ex...View More Asus ESD Guards - Enhanced ESD Protection, Asus EPU, Ai Charger, Crystal Sound 2, Asus 5X
Advanced Technologies	Supports Intel Turbo Boost Technology 2.0, Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types, Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology, Clear Video HD Technology
Advanced Features	Supports Intel 22 nm CPU, Supports Intel Extreme Memory Profile (XMP)

Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
