ASUS X99 Deluxe Motherboard

Name: ASUS X99 Deluxe Motherboard
Brand: Asus Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

ASUS X99 Deluxe Motherboard Share on

Asus Motherboards

₹58499.00

₹58499.00

Go to store

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

Asus X99 Deluxe Motherboard Specifications

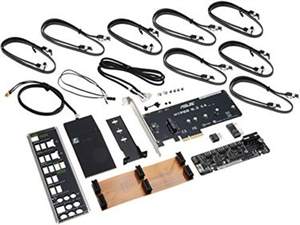

In The Box

Sales Package

1 x Motherboard, Users Manual, Asus Q-Shield, 8 x SATA 6 Gb/s Cables, 1 x Asus 2-Way/3-Way SLI Bridge, 1 x M.2 X4 Bracket, 1 x Asus 3T3R Dual Band Wi-Fi Moving Antennas (Wi-Fi 802.11 a/b/g/n/ac Compliant), 1 x Fan Extension Card (3 x 4-pin Fan Out), 1 x Q-connector (2 in 1), 1 x 5-pin to 5-pin Cable...View More 1 x Motherboard, Users Manual, Asus Q-Shield, 8 x SATA 6 Gb/s Cables, 1 x Asus 2-Way/3-Way

General

Brand	Asus
Model ID	X99-DELUXE

Essentials

Form Factor	ATX
Socket Type	LGA 2011
Compatible Processors	Intel Core i7 Processor
Chipset	Intel X99
Chipset Manufacturer	Intel

Connectivity

Ethernet Controller	Intel I218 V, Intel I211-AT
Ethernet Features	1 x Gigabit LAN Controller, 1 x Gigabit LAN, Dual Gigabit LAN Controllers - 802.3az Energy Efficient Ethernet (EEE) Appliance, Support Teaming Technology, Asus Turbo LAN Utility
Wireless and Bluetooth	Wi-Fi 802.11 a/b/g/n/ac, Supports Dual Band Frequency 2.4/5 GHz, Support Asus Wi-Fi Go Utility, Upto 1300 Mbps Transfer Speed and Bluetooth V4.0

Memory

Number of Memory Slots	8 Slots
Memory Configuration	64 GB DDR4 Quad Channel DIMM
Memory Frequency	2133 MHz, 3200 (O.C.) MHz, 3000 (O.C.) MHz, 2800 (O.C.) MHz, 2400 (O.C.) MHz, 2666 (O.C.) MHz
ECC Support	Non-ECC
Buffered Memory	No

Storage

SATA 6 Gb/s	Intel X99
RAID Controller	Intel X99
RAID Configurations	0, 1, 5, 10

Audio

Audio Codec	Realtek ALC1150
Audio Channels	8
Audio Features	HD Audio CODEC Featuring Crystal Sound 2, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High Quality 112 dB SNR Stereo Playback Output (Line-out at Rear) and 104 dB SNR Stereo Playback Input (Line-in), High-fidelity Audio OP AMP, Audio (DTS Ultra PC II, DTS Connect, Optical ...View More HD Audio CODEC Featuring Crystal Sound 2, Supports: Jack-detection, Multi-streaming, Front

Graphics

Multi GPU Support

Yes, Supports NVIDIA Quad-GPU SLI Technology, Supports NVIDIA 3-Way SLI Technology, Supports AMD Quad-GPU CrossFireX Technology, Supports AMD 3-Way CrossFireX Technology

Internal I/o Headers

ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
SATA 6 Gb/s Headers	8
USB 2.0 Headers	2
USB 3.0 Headers	2
Fan Headers	1 (Processor Fan Headers), 6 (System Fan Headers)
Front Panel Headers	1
Other Connectors	Type 2242/2260/2280 Storage Devices Support (both SATA and PCIE Mode), 1 x System Panel (Q-Connector), with M Key, 1 x MemOK Button, Type 2260/2280/22110 Storage Devices Support (Support PCIE SSD only), 1 x Sonic SoundStage Button, 1 x Safe Boot Button, 2 x SATA Express Connector: Red, 1 x M.2 Socke...View More Type 2242/2260/2280 Storage Devices Support (both SATA and PCIE Mode), 1 x System Panel (Q

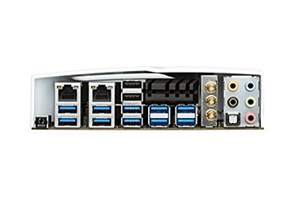

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	10
Audio I/O Channels	5
RJ-45 Ethernet Jacks	2
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
Other Ports	1 x USB BIOS Flashback Button, 1 x Asus Wi-Fi GO Module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0)

General Features

OS Support	Windows: 7 (32-bit, 8.1 (32-bit, 64-bit), 64-bit), 8 (32-bit, 64-bit)
Support CDs	Drivers, Asus Utilities, EZ Update, Anti-virus Software (OEM Version)
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS, Asus EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen, F3 Shortcut Functions and Asus DRAM SPD (Serial Presence Dete...View More 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Multi-langu
Features	Asus 5X Protection: Asus DIGI+ VRM - 8 Phase Digital Power Design, Asus Exclusive Features: MemOK, USB 3.0 Boost, Asus High-Quality 5K-Hour Solid Capacitors - 2.5x Long Lifespan with Excellent Durability, Asus Wi-Fi GO, Asus ESD Guards - Enhanced ESD Protection, Interactive HomeCloud, Asus Q Design,...View More Asus 5X Protection: Asus DIGI+ VRM - 8 Phase Digital Power Design, Asus Exclusive Features
Advanced Technologies	Supports Intel Turbo Boost Technology, Supports Intel Smart Response Technology, Intel Rapid Recovery Technology
Advanced Features	Supports Intel Extreme Memory Profile (XMP), Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types, Supports Intel 22 nm CPU

Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
