Sales Package | SMPS, Power cables, Crimping Cables |
Brand | Artis |
Power Output | 400 W with Maximum Power Output of400 W |
Series | ARTIS VIP |

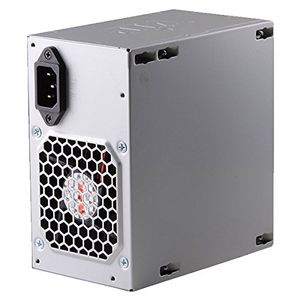

Model Name | 400R+ 400W SMPS Power Supply Unit |
Processor Support | Intel and AMD Processor Support |
Additional Features | Over Voltage Protection, Over Load Protection, Burnout Protection, High Efficiency, 80mm Cooling Fan, Max power: 400W, Specially designed for Desktop Computers, Input Voltage Range - 180V to 264V AC. Input Frequency - 47Hz to 63Hz.33mm, Power Transformer. 470uF Input Filter Capacitor, 12Ms Holdup Time. Output Voltage Rise Time < 20ms. Short Circuit Protection. Dimensions:(L x W x H) 150 x 140 x 86mm. |
Power Factor Correction (PFC) | Active PFC with Value of 0.99 |
Input Voltage 1 | 200 - 200 V |
Input Current | 5 -5 A |
Hold Up Time | 12 ms |
Input Frequency | 47 - 63 Hz |
Efficiency | 90 % |
Input Voltage 2 | 240 - 240 V |
Current at DC Output of +3.3 V | 25 A |
Current at DC Output of +5 V | 25 A |
Current at DC Output of +12 V | 20 A |
Current at DC Output of -12 V | 0.8 A |
Current at DC Output of +5 V sb | 25 A |
SATA | 3 SATA Cables |
Humidity | 10 |
Coating Type | Matte Metallic |
Safety Standards | CE, FCC, ROHS, CCC, CB |
DC to DC Conversion | Yes |
Certification | CE, FCC, ROHS, CB, CCC |
Fan Type | 1 x 80 mm |
Weight | 1 kg |
Width x Height x Depth | 140 x 86 x 150 mm |
