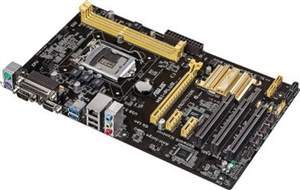

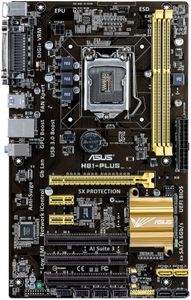

Asus H81-PLUS Motherboard

Name: Asus H81-PLUS Motherboard
Brand: Asus Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

Asus H81-PLUS Motherboard Share on

Asus Motherboards

₹12956.00

₹12956.00

Go to store

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

Asus H81-PLUS Motherboard Specifications

In The Box

Sales Package

Users Manual, I/O Shield, 2 x SATA 6 Gb/s Cables

General

Brand	Asus
Model ID	H81-PLUS

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel Pentium Processors, Intel 4th Generation Core i7 Processors, Intel Celeron Processors, Intel 4th Generation Core i3 Processors, Intel 4th Generation Core i5 Processors
Chipset	Intel H81
Chipset Manufacturer	Intel

Connectivity

Ethernet Controller	Realtek 8111G
Ethernet Features	1 x Gigabit LAN Controller

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 3 Gb/s	Intel H81
SATA 6 Gb/s	Intel H81

Audio

Audio Codec	Realtek ALC887
Audio Channels	8
Audio Features	High Definition Audio Codec, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Graphics

Integrated Graphics card

Yes

Expansion Slots

PCI Slots	3
PCIe x1 Slots, Generation	2, 2.0
PCIe x16 Slots, Generation	1

Internal I/o Headers

SATA 3 Gb/s Headers	2
SATA 6 Gb/s Headers	2
USB 2.0 Headers	3
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Chassis Fan Connector, 1 x Clear CMOS Jumper, 1 x Front Panel Audio Connector (AAFP), 1 x S/PDIF Out Header, 1 x 4-pin ATX 12 V Power Connector, 1 x CPU Fan Connector, 1 x 24-pin EATX Power Connector

Back Panel Ports

USB 2.0 Ports, Controller	2
VGA/D Sub Ports	1
USB 3.0 Ports, Controller	2
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2
Other Ports	1 x COM Port, 1 x Parallel Port

General Features

OS Support	8, 8.1, Windows: 7
Support CDs	Drivers, Asus Utilities, Asus EZ Update, Anti-virus Software (OEM Version)
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, Asus EZ Flash 2, Asus CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen, F3 Shortcut Functions and Asus DRAM SPD (Serial Presence Detect) Memory Information
Features	VGA Output Support: RGB Port, Asus High Quality 5K-Hour Solid Capacitors - 2.5x Long Lifespan with Excellent Durability, Low EMI Solution, Asus UEFI BIOS EZ Mode Featuring Friendly Graphics User Interface, Supports RGB with Maximum Resolution 1920 x 1200 at 60 Hz, Asus EPU, Asus 5X Protection: Asus ...View More VGA Output Support: RGB Port, Asus High Quality 5K-Hour Solid Capacitors - 2.5x Long Lifes
Advanced Technologies	Supports Intel Turbo Boost Technology 2.0, Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types, Clear Video HD Technology, Supports Intel Rapid Start Technology, Intel Smart Connect Technology
Advanced Features	Supports Intel 22 nm CPU, Supports Intel Extreme Memory Profile (XMP), Hyper DIMM Support is Subject to the Physical Characteristics of Individual CPUs

Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
