Asus Z97-PRO Motherboard

Name: Asus Z97-PRO Motherboard
Brand: Asus Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

Asus Z97-PRO Motherboard Share on

Asus Motherboards

₹125287.00

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

Asus Z97-PRO Motherboard Specifications

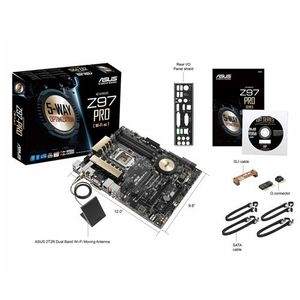

In The Box

Sales Package

Users Manual, Asus Q-Shield, 4 x SATA 6Gb/s Cable, 1 x Asus 2T2R Dual Band Wi-Fi Moving Antennas (Wi-Fi 802.11a/b/g/n/ac Compliant), 1 x SLI Bridge, 1 x Q-connector (2 in 1)

General

Brand	Asus
Model ID	Z97-PRO (Wi-Fi ac)

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel New 4th Generation Core i5 Processors, Intel 5th Generation Core i7 Processors, Intel 4th Generation Core i7 Processors, Intel New 4th Generation Core i3 Processors, Intel 5th Generation Core i5 Processors, Intel Pentium Processors, Intel New 4th Generation Core i7 Processors, Intel 4th Genera...View More Intel New 4th Generation Core i5 Processors, Intel 5th Generation Core i7 Processors, Inte
Chipset	Intel Z97
Chipset Manufacturer	Intel

Connectivity

Ethernet Controller	Intel I218 V
Ethernet Features	Dual Interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY), Gigabit Intel LAN Connection - 802.3az Energy Efficient Ethernet (EEE) Appliance
Wireless and Bluetooth	Wi-Fi 802.11a/b/g/n/ac, Supports Dual Band Frequency 2.4/5 GHz, Support Asus Wi-Fi Go Utility and Bluetooth V4.0

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	2000(O.C) MHz, 1333 MHz, 2400(O.C) MHz, 2800(O.C) MHz, 3000(O.C) MHz, 2133(O.C) MHz, 2200(O.C) MHz, 2933(O.C) MHz, 2666(O.C) MHz, 3200(O.C) MHz, 1600 MHz, 1866(O.C) MHz, 2600(O.C) MHz, 3100(O.C) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	Intel Z97, ASMedia PCIe SATA
RAID Controller	Intel Z97
RAID Configurations	0, 1, 5, 10

Audio

Audio Codec	Realtek ALC1150
Audio Channels	8
Audio Features	High Definition Audio CODEC Featuring Crystal Sound 2, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High Quality 112 dB SNR Stereo Playback Output and 104 dB SNR Recording Input, Audio Feature: Absolute Pitch 192 kHz / 24-bit True BD Lossless Sound, DTS Ultra PC II, DTS...View More High Definition Audio CODEC Featuring Crystal Sound 2, Supports: Jack-detection, Multi-str

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, Supports NVIDIA Quad-GPU SLI Technology, Supports AMD 3-Way CrossFireX Technology

Expansion Slots

PCIe x1 Slots, Generation	2.0, 4
PCIe x16 Slots, Generation	1, 2.0 and 2, 3.0/2.0

Internal I/o Headers

ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
USB 3.0 Headers	2
Fan Headers	1 (Processor Fan Headers), 4 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x System Panel (Q-Connector), 1 x MemOK Button, 1 x USB BIOS Flashback Button, 1 x SATA Express Connector: Black, 1 x S/PDIF Out Header, 1 x 24-pin EATX Power Connector, 1 x M.2 Socket 3 for M Key, 1 x CPU Fan Connector (1 x 4-pin), 1 x DRCT Header, 1 x EPU Switch, Compatible with 2 x SATA 6.0 Gb/...View More 1 x System Panel (Q-Connector), 1 x MemOK Button, 1 x USB BIOS Flashback Button, 1 x SATA

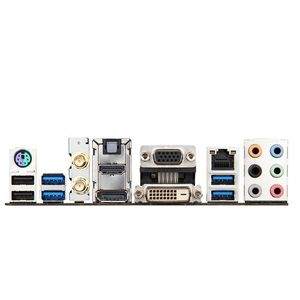

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4
VGA/D Sub Ports	1
DVI Ports	1
HDMI Ports	1
Audio I/O Channels	6
RJ-45 Ethernet Jacks	1
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
PS/2	1
Other Ports	1 x Display Port, 1 x DVI-D, 1 x Asus Wi-Fi GO Module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0)

General Features

Overclocking	Asus C.P.R.(CPU Parameter Recall)
OS Support	Windows: 7, 8.1, 8
Support CDs	Drivers, Asus Utilities, EZ Update, Anti-virus Software (OEM Version)
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, Asus EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen, F3 Shortcut Functions, and Asus DRAM SPD (Serial Presence Detect...View More 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language
Features	DIGI+ Power Control, Short Circuit Damage Prevention, Asus TPU, Ai Charger+, Asus Enhanced DRAM Overcurrent Protection, Precise Digital Power Control, Asus 5X Protection: Asus DIGI+ VRM - 12 Phase Digital Power Design, Anti-Surge, Asus Stainless Steel Back I/O, Asus Exclusive Features: AI Suite 3, T...View More DIGI+ Power Control, Short Circuit Damage Prevention, Asus TPU, Ai Charger+, Asus Enhanced
Advanced Technologies	Supports Intel Turbo Boost Technology 2.0, Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types, Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology
Advanced Features	Supports Intel 22 nm CPU, Supports Intel Extreme Memory Profile (XMP), Hyper DIMM Support is Subject to the Physical Characteristics of Individual CPUs

Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
