Maximum Operating Altitude | 3000 m |
Maximum Operating Temperature | 40 degree C |
Maximum Storage Altitude | 5000 m |
Minimum Operating Temperature | 0 degree C |
Storage Temperature | 15 to 45 degree C |
Storage Humidity | 0-95% Humidity Non-condensing % |
Brand | Champion |
Cold Start | Yes |
Overload Capacity | 1.2 |
Type | Line-interactive |
Model Number | 1000LB |
Overload Protection | Yes |
Model Name | Line Interactive - External Battery |
Certification | ISO 9001 : 2008 guidelines certified by ABS quality Evaluations Inc USA, and ISO 14001:2004 guidelines certified by MAX Certifications Pvt Ltd, Mumbai |
Technology Used | Line Interactive Technology, Auto Voltage Regulation (AVR), Single phase with Pure Sinewave Technology. |
Form Factor | Tower Model |
Color | White |
Low Battery Indicator | Yes |
Display Indicator Functions | AC Normal, Backup, Charging, Low Battery, Battery Level, Load Level Bar Graph |
Serial Port | Yes |
Display Type | NA |
Audible Indicator Functions | On battery, Low battery, Overload |

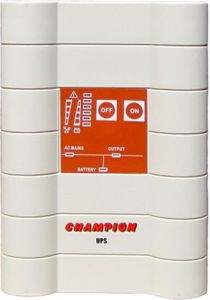

LED Indicator Function | AC Normal, Backup, Charging, Low Battery, Battery Level, Load Level Bar Graph |
Digital Display | No |
Emergency Power Off | Yes |
Recharge Time | 4 - 6 hours for 90% capacity after discharge to 50% |
Replacement Battery | Yes |
Battery Capacity | 24V/9AH |
Battery Voltage | 220 +/- 5% V |
Number of Batteries | 2 x 12V (24V) (External) |
Replacement Battery Type | Lead Acid Battery |
Hot-swappable Battery | No |
Battery Type | Any External Battery of 24V |
Cord Length | 1.2 m |
Weight | 10.5 kg |

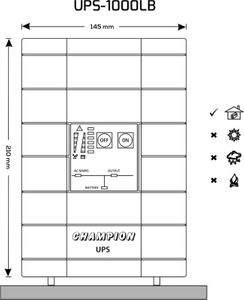

Height | 21 cm |
Width | 14.5 cm |
Depth | 40 cm |
Input Plug Type | Male IEC 320 Appliance coupler with 3 prolonged 1.2 mts line cord |
Input Frequency | 50 Hz +/- 4 Hz |
Input Voltage | 220 V |
Phase | Single Phase |
Other Input Features | Input Voltage Range: 145 to 270 VAC |
Output Power Wattage | 700 W |
Efficiency | >90% % |
Output Power Factor | 0.6 |
Transfer Time | 2 ms |
Output Voltage | 220 V |

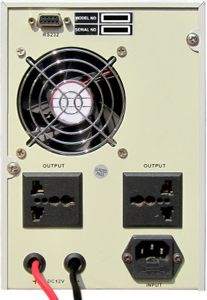

Outlet Plug Type | Multipin Sockets |
Number of Outlet Plugs | 2 |
Surge Protection | Yes, 2 Outlet Plugs |
Other Output Features | Pure Sinewave output at 220VAC +/- 5% |
Output Waveform | Pure Sine Wave |
Output Frequency | 50 Hz +/- 1 % |
