Gigabyte GA-AM1M-S2H Motherboard Specifications

In The Box

Sales Package Motherboard, SATA Cables, Rear I/O Panel Shield, SATA Cable and Supporting CD Software

General

Brand Gigabyte
Model ID GA-AM1M-S2H

Essentials

Form Factor Micro-ATX
Compatible Processors AMD Athlon Series Processors, AMD Sempron Series Processors
Chipset AMD AM1
Chipset Manufacturer AMD

Connectivity

Ethernet Controller Realtek GbE
Ethernet Features 10/100/1000 Mbit

Memory

Number of Memory Slots 2 Slots
Memory Configuration 32 DDR3 DIMM
Memory Frequency 1600 MHz, 1333 MHz

Storage

SATA 6 Gb/s AMD AM1

Audio

Audio Codec Realtek ALC887
Audio Channels 7.1
Audio Features High Definition Audio, Support for S/PDIF Out

Graphics

Integrated Graphics card Yes

Expansion Slots

PCIe x1 Slots, Generation 2, 2.0
PCIe x16 Slots, Generation 2.0, 1

Internal I/o Headers

ATX Power Connectors 1 (24 Pin ATX Power Connectors)
SATA 6 Gb/s Headers 2
USB 2.0 Headers 3
Fan Headers 1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers 1
Other Connectors 1 x Front Panel Audio Header, 1 x Parallel Port Header, 1 x Clear CMOS Jumper, 1 x 4-pin ATX 12 V Power Connector, 1 x S/PDIF Out Header, 1 x Serial Port Header

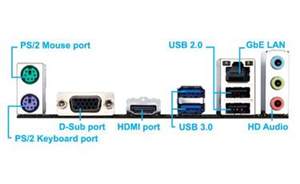

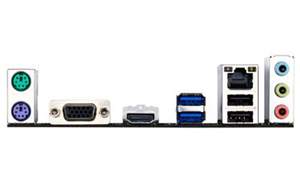

Back Panel Ports

USB 2.0 Ports, Controller 2
VGA/D Sub Ports 1
USB 3.0 Ports, Controller 2
Audio I/O Channels 3
HDMI Ports 1
RJ-45 Ethernet Jacks 1
PS/2 2

General Features

OS Support 7 (32-bit, 64-bit), Windows: XP (32-bit), 64-bit), 8.1 (32-bit, 64-bit), 8 (32-bit
Bundled Software Norton Internet Security (OEM Version)
Hardware Monitoring System Voltage Detection, APU / System Temperature Detection, APU / System Fan Speed Detection, APU Overheating Warning, APU / System Fan Speed Control
BIOS 1 x 32 Mbit Flash, Use of Licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Features 1 x D-Sub Port, Support for Xpress Install, Support for BIOS, Support for On / Off Charge, Integrated Graphics Processor, Support for EasyTune, Dimensions: 226 x 170 mm, Supporting a Maximum Resolution of 1920 x 1200, Support for Q-Flash, Support for Smart Recovery 2, I/O Controller: iTE I/O Controller Chip, 1 x HDMI Port, Supporting a Maximum Resolution of 4096 x 2160
Advanced Features Support for Extreme Memory Profile (XMP) Memory Modules
