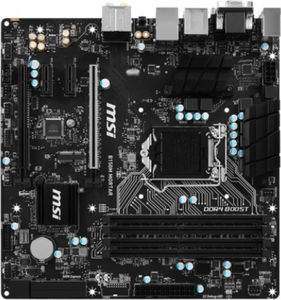

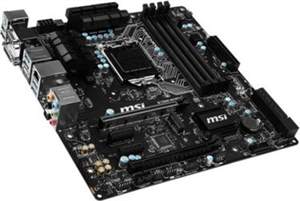

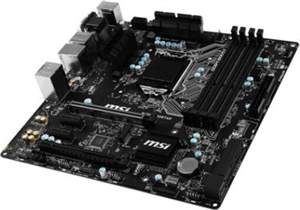

MSI B150M MORTAR Motherboard Specifications
In The Box
| Sales Package | Motherboard |
General
| Brand | MSI |
| Model ID | Main Board B150M MORTAR |
Essentials
| Form Factor | Micro-ATX |
| Socket Type | LGA1151 |
| Compatible Processors | Supports 6th Gen Intel® Core™ i3/i5/i7 processors |
| Chipset | Intel® B150 |
| Chipset Manufacturer | Intel |
Connectivity
| Wireless and Bluetooth | 1 x Realtek RTL8111H Gigabit LAN controller |
Memory
| Memory Configuration | 64 GB DDR4 Dual Channel DIMM |
| ECC Support | Supports ECC |
| Buffered Memory | No |
Audio
| Audio Codec | Realtek® ALC892 Codec |
| Audio Channels | 7.1 |
| Audio Features | Realtek® ALC892 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output |
Graphics
| Integrated Graphics card | Dependent on installed CPU |
Internal I/o Headers
| Other Connectors | - 1 x PS/2 keyboard/ mouse combo port - 2 x USB 2.0 ports - 4 x USB 3.1 Gen1 ports - 1 x VGA port - 1 x HDMI™ port - 1 x DVI-D port - 1 x LAN (RJ45) port - 1 x Clear CMOS button - 1 x Optical S/PDIF OUT connector - 5 x OFC audio jacks, - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power ...View More - 1 x PS/2 keyboard/ mouse combo port - 2 x USB 2.0 ports - 4 x USB 3.1 Gen1 ports - 1 x |
Back Panel Ports
| USB 2.0 Ports, Controller | 4 |
| HDMI Ports | 1 |
General Features
| BIOS | Click BIOS5: Secure and Reliable UEFI BIOS solution |
| Advanced Features | Military Class 4: Top Quality & Stability, Guard-Pro: Improved Protection and Power Efficiency, MULTI-GPU with VGA Armor: VGA Armor PCI-E slots. Supports AMD Crossfire™ |
