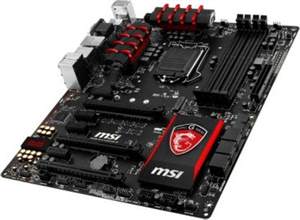

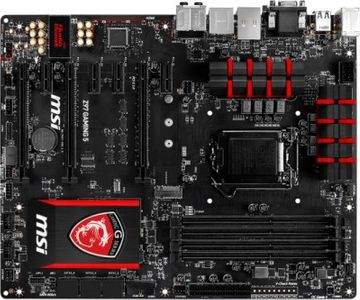

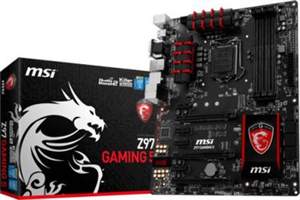

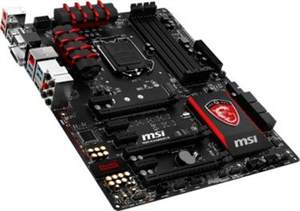

MSI Z97 Gaming 5 Motherboard

Name: MSI Z97 Gaming 5 Motherboard
Brand: MSI Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

MSI Z97 Gaming 5 Motherboard Share on

MSI Motherboards

₹21139.00

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

MSI Z97 Gaming 5 Motherboard Specifications

In The Box

Sales Package

Motherboard, 2 x SATA3 Cables, I/O Panel Shield

General

Brand	MSI
Model ID	Z97 Gaming 5

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel Core i7 Processor, Intel 4th Generation Core Processors, Intel 5th Generation Core Processors, Intel Celeron Processors, Intel Pentium Processors
Chipset	Intel Z97 Express
Chipset Manufacturer	Intel
FSB	100 MHz

Connectivity

Ethernet Controller	Killer E2205 Gigabit LAN
Ethernet Features	10/100/1000

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1600 MHz, 3200 MHz, 1066 MHz, 2400 2600 MHz, 1866 MHz, 2666 MHz, 3000 MHz, 2133 MHz, 1333 MHz, 2000 MHz, 3100 MHz, 2200 MHz, 2800 MHz, 3300 (OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	Intel Z97 Express
RAID Controller	Intel Z97 Express
RAID Configurations	0, 1, 5, 10

Audio

Audio Codec	Realtek ALC1150
Audio Channels	7.1
Audio Features	Amazing sound with Audio Boost 2, Powered by Creative Sound Blaster Cinema 2, HD Audio, USB Audio Power

Graphics

Multi GPU Support

Yes, Supports 3-way AMD CrossFire Technology, Supports 2-way NVIDIA SLI Technology

Expansion Slots

PCIe x1 Slots, Generation	4, 2.0
PCIe x16 Slots, Generation	3.0, 3

Internal I/o Headers

ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
USB 3.0 Headers	1
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x M.2 Port, 1 x Clear CMOS Jumper, 1 x Serial Port Connector, 2 x System Panel Connectors, 1 x Chassis Intrusion Connector, 1 x Audio Power Switch, 1 x Direct Audio Power Connector, 1 x 2 Digit Debug Code LED

Back Panel Ports

USB 2.0 Ports, Controller	4
VGA/D Sub Ports	1
USB 3.0 Ports, Controller	4
DVI Ports	1
HDMI Ports	1
Audio I/O Channels	6
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x DVI-D Connector

General Features

Overclocking	OC Genie 4: Overclock in 1 Second
Bundled Software	Live Update 6, Command Center, Unlimted RAM Disk
OS Support	Windows: 7, 8, 8.1
BIOS	Click BIOS 4: Easily Fine-tune System
Features	Dimensions: 305 x 244 mm, DirectX: DX11, Supports Intel Extreme Memory Profile (XMP), VGA Maximum Share Memory: 1760 MB, 9 Mounting Holes
Advanced Technologies	Intel Smart Response Technology, Intel Rapid Start Technology and Intel Smart Connect Technology
Advanced Features	XSplit Gamecaster: Show off Your Skills and Achievements, Guard-Pro: Improved Protection and Power Efficiency, Gaming App: Boost Your Frame Rate, Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices, Military Class 4 Components, Super Ferrite Choke, Dark Cap

Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
