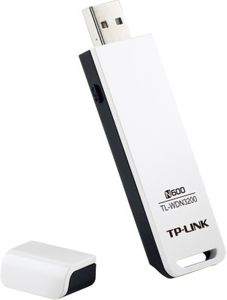

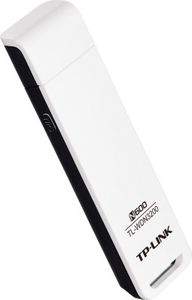

TP-LINK TL-WDN3200 Dual Band N600 Wireless USB Adapter

TP-LINK TL-WDN3200 Dual Band N600 Wireless USB Adapter Share on

₹15502.00

TP-LINK TL-WDN3200 Dual Band N600 Wireless USB Adapter Specifications

Dimensions

Depth 24 mm
Width 86.5 mm
Height 10 mm

General

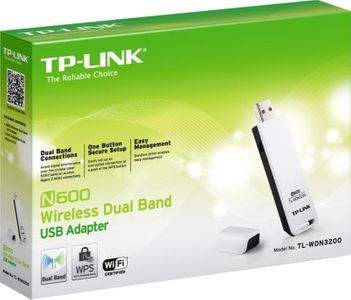

Sales Package Wireless Adapter TL-WDN3200, Resource CD and Quick Installation Guide
Part TL-WDN3200
Brand TP-LINK
Model N600 Wireless Dual Band USB Adapter
Antennae Omni Directional
Frequency 2.4 - 2.4835 GHz, 5.15 - 5.35 GHz, 5.745 - 5.825 GHz
Work Mode Infrastructure, Ad-Hoc
Encryption WPA-PSK/WPA2-PSK, 64-bit/128-bit WEP, 802.1x
OS Supported 7, Windows: XP, Vista
In The Box Wireless Adapter TL-WDN3200, Resource CD and Quick Installation Guide
USB Connector USB 2.0
Transmit Power 20 dBm
Supported Protocols IEEE 802.11a, IEEE 802.11g, IEEE 802.11b, IEEE 802.11n
Receiver Sensitivity 270M_2.4 GHz: -70 dBm, 130M_2.4 GHz: -70 dBm, 54M_2.4 GHz: -76 dBm, 11M_2.4 GHz: -86 dBm, 6M_2.4 GHz: -91 dBm, 1M_2.4 GHz: -97 dBm, 270M_5 GHz: -66 dBm, 130M_5 GHz: -69 dBm, 54M_GHz: -76 dBm, 6M_5 GHz: -90 dBm
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Maximum Wireless Transmission Rate 300 Mbps

Operating Conditions

Storage Humidity 5 % - 90 % Non-condensing
Operating Humidity 10 % - 90 % Non-condensing
Storage Temperature -40DegC - 70DegC
Operating Temperature 0DegC - 40DegC

Product Details

Work Mode Infrastructure, Ad-Hoc
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Operating Temperature 0DegC - 40DegC
Operating Humidity 10 % - 90 % Non-condensing
Storage Temperature -40DegC - 70DegC
Receiver Sensitivity 270M_2.4 GHz: -70 dBm, 130M_2.4 GHz: -70 dBm, 54M_2.4 GHz: -76 dBm, 11M_2.4 GHz: -86 dBm, 6M_2.4 GHz: -91 dBm, 1M_2.4 GHz: -97 dBm, 270M_5 GHz: -66 dBm, 130M_5 GHz: -69 dBm, 54M_GHz: -76 dBm, 6M_5 GHz: -90 dBm
Storage Humidity 5 % - 90 % Non-condensing

System Requirements

Operating System 7, Windows: XP, Vista
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
