Sales Package | Wireless Adapter, Resource CD, Quick Installation Guide |
OS Supported | Vista, Windows: XP, 7 |
Supported Protocols | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Antennae | Internal |
Encryption | WPA/WPA2, 64/128-bit WEP, WPA-PSK/WPA2-PSK |
Transmit Power | 20 dBm |
Part | TL-WN823N |
Brand | TP-LINK |

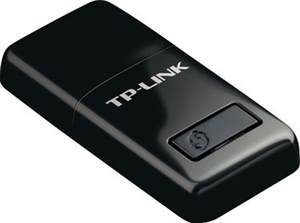

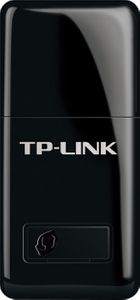

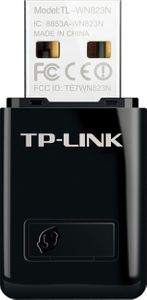

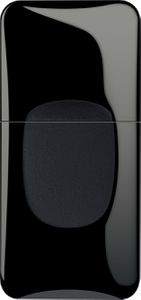

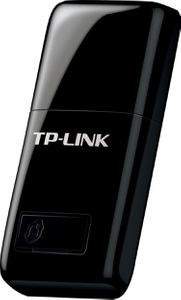

Model | 300 Mbps Mini Wireless N USB Adapter |
Frequency | 2.4 GHz |
Work Mode | Client Mode (Support Ad-hoc/Infrastructure Network), Soft AP Mode |
In The Box | Wireless Adapter, Resource CD, Quick Installation Guide |
USB Connector | USB 2.0 |
Receiver Sensitivity | 300M: -65 dBm, 270M: -65 dBm, 130M: -68 dBm, 108M: -68 dBm, 54M: -72 dBm, 11M: -85 dBm, 6M: -87 dBm, 1M:-93 dBm |
Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
Maximum Wireless Transmission Rate | 300 Mbps |
Work Mode | Client Mode (Support Ad-hoc/Infrastructure Network), Soft AP Mode |
Operating Temperature | 0 DegC - 40 DegC degree C |
Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
Operating Humidity | 10 % - 90 % Non-condensing % |
Storage Temperature | -40 DegC - 70 DegC degree C |
Receiver Sensitivity | 300M: -65 dBm, 270M: -65 dBm, 130M: -68 dBm, 108M: -68 dBm, 54M: -72 dBm, 11M: -85 dBm, 6M: -87 dBm, 1M:-93 dBm |
Storage Humidity | 5 % - 90 % Non-condensing % |
Warranty Summary | 3 Years Limited Carry In Warranty |
Covered in Warranty | Manufacturing Defects |
Warranty Service Type | Carry In |
Not Covered in Warranty | Physical Damage |
Width | 39 mm |
Height | 7.87 mm |
Depth | 18.35 mm |
Storage Humidity | 5 % - 90 % Non-condensing % |
Operating Humidity | 10 % - 90 % Non-condensing % |
Storage Temperature | -40 DegC - 70 DegC degree C |
Operating Temperature | 0 DegC - 40 DegC degree C |
Operating System | Vista, Windows: XP, 7 |
