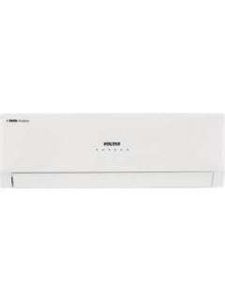

Voltas 123 LYB 1 Ton 3 Star Split Air Conditioner Specifications
General
| Title | Voltas 123 LYB 1 Ton 3 Star Split AC |
| Star Rating | 3 |
| Brand | Voltas |
| AC Type | Split |
| Capacity in Tons | 1 Ton |
| Model No | 123 LYB |
| Inverter Technology | No |
Cooling Performance
| Operating Current | 4.6 Ampere |
| Cooling Capacity | 3200 Watts |
| Power Input | 1028 Watt |
| EER | 3.11 W/W |
| Power Requirements | AC 230 V, 50 Hz |
Remote Control
| Remote Control | LCD Remote |
| Night Glow Functions On Remote Buttons | No |
Body Design Features
| Color | White |
| Compressor | High EER Rotary |
| Refrigerant | R 22 |
| Other Body Design Features | Blue Hydrophilic Aluminium Fin |
Services Installation
| Installation Details | Installation of Air-conditioner is charged extra to customer at the time of installation and needs to be paid directly to the service engineer. Standard Installation of Split AC Covers only Split AC:- 1.Drilling of hole in Brick wall for taking out the pipes 2.Fixing hole sleeve & Cap 3.Fixing the Indoor and Outdoor Unit. 4.Connecting Indoor and Outdoor units using Standard Kit provided by Manufacturer (at an additional cost, unless specified otherwise). Wrapping the pipe with seasoning tape. 5. |
| Services Included In Basic Installation | Standard Installation of Split AC Covers only Split AC:- 1.Drilling of hole in Brick wall for taking out the pipes 2.Fixing hole sleeve & Cap 3.Fixing the Indoor and Outdoor Unit. 4.Connecting Indoor and Outdoor units using Standard Kit provided by Manufacturer (at an additional cost, unless specified otherwise). Wrapping the pipe with seasoning tape. 5.Connection to Stabilizer or Power point in the range of Power Cord Provided by Manufacture. 6.Temperature/Performance Check & Demo and Maintenan |
| Installation Warranty | 1 Year for the product & 5 Years for the Compressor |
Convenience Features
| Auto Clean | No |
| Timer | Yes On-Timer: Off-Timer: |
| Hot & Cold | No |
| Auto Restart | Yes |
| Front Panel Display | Yes |
| Other Convenience Features | Anti-fungal Clean |
| Additional Features | Inner Grooved Copper Tubes Connecting Cable: 3.5 m, Connecting Pipe Length: 3 m, Connecting Pipe Type: Cu-Cu (1/2 inch and 1/4 inch) |
| Self Diagnosis | Yes |
Filters
| Anti Bacteria Filter | Yes |
| Dual Protection Filter | No |
| Virus and Allergy Safe Filter | No |
| Active Carbon Filter | No |
| Triple Filter | No |
| Catechin | Yes |
| Other Filters | Dust Filter |
Air Flow Features
| Speed Setting | No |
| Auto Air Swing | Present |
| Other Features | Air Vent: Cross Flow , Air Circulation:353.1, Air Flow Volume - Indoor:630 CMH |
Modes
| Cool Mode | No |
| Dehumidification | Yes |
| Dry Mode | No |
| Sleep Mode | Yes |
| Turbo Mode | No |
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
