| APU | FM2+ Socket:AMD A series processorsAMD Athlon series processors(Please refer CPU Support List for more information.) |
| Chipset | AMD A68H |
| Memory | 2 x DDR3 DIMM sockets supporting up to 64 GB of system memory* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.Dual channel memory arch |
| Onboard Graphics | Integrated Graphics Processor:1 x D-Sub port, supporting a maximum resolution of 1920x1200Maximum shared memory of 2 GB |
| Audio | Realtek\xC2\xA0ALC887 codecHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.Support for S/PDIF Out |
| LAN | Realtek\xC2\xA0GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)* To support PCI Express 3.0, you must install an FM2+ APU.1 x PCI Express x1 slot(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)1 x PCI slot |
| Storage Interface | Chipset:4 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 10, and JBOD |
| Multi-Graphics Technology | Support for AMD Dual Graphics technology* Only A series APUs support AMD Dual Graphics. |
| USB | Chipset:2 x USB 3.0/2.0 ports on the back panel8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x APU fan header2 x system fan headers1 x front panel header1 x front panel audio header1 x S/PDIF Out header2 x USB 2.0/1.1 headers1 x speaker header1 x chassis intrusion header1 x Clear CMOS jumper |

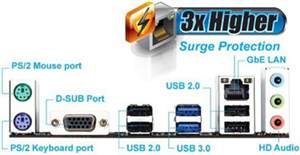

| Back Panel Connectors | 1 x PS/2 keyboard port1 x PS/2 mouse port1 x D-Sub port2 x USB 3.0/2.0 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller | iTE\xC2\xA0I/O Controller Chip |
| H/W Monitoring | System voltage detectionAPU/System temperature detectionAPU/System fan speed detectionAPU overheating warningAPU/System fan fail warningAPU/System fan speed control* Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 1 x 64 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for @BIOSSupport for Q-FlashSupport for Xpress InstallSupport for EasyTune* Available functions in EasyTune may differ by motherboard model.Support for Smart Recovery 2Support for ON/OFF Charge |
| Bundle Software | Norton\xC2\xA0Internet Security (OEM version) |
| Operating System | Support for Windows 8.1/7 32-bit/64-bitSupport for Windows XP 32-bit* To support Windows XP 32-bit, you must install an AMD FM2+ Kaveri APU.* It requires Service Pack 3 to support Windows XP driver installation. |
| Form Factor | Micro ATX Form Factor; 22.5cm x 17.4cm |
