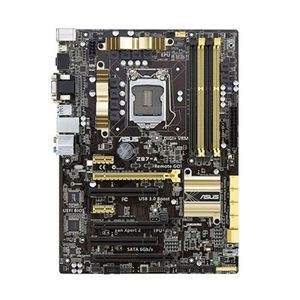

Asus Z87-A Motherboard

Name: Asus Z87-A Motherboard
Brand: Asus Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

Asus Z87-A Motherboard Share on

Asus Motherboards

₹20481.00

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

Asus Z87-A Motherboard Specifications

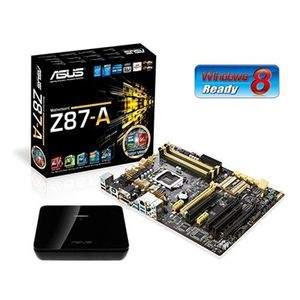

In The Box

Sales Package

Motherboard, Installation Guide, CD, Shield

General

Brand	Asus
Model ID	Z87-A

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel Pentium Processor, Intel Celeron Processor, Intel 4th Generation Core i7 Processor, Intel 4th Generation Core i3 Processor, Intel 4th Generation Core i5 Processor
Chipset Manufacturer	Intel

Connectivity

Ethernet Controller	Realtek 8111GR
Ethernet Features	1 x Gigabit LAN Controller

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 GB DDR3 Dual Channel DIMM
Memory Frequency	1600 MHz, 2600(OC) MHz, 2666(OC) MHz, 2000(OC) MHz, 2400(OC) MHz, 3000(OC) MHz, 1866(OC) MHz, 2800(OC) MHz, 1333 MHz, 2500(OC) MHz, 2933(OC) MHz, 1800(OC) MHz, 2133(OC) MHz, 2200(OC) MHz
ECC Support	Non-ECC
Buffered Memory	No

Storage

SATA 6 Gb/s	Intel Z87
RAID Controller	Intel Z87
RAID Configurations	0, 1, 5, 10

Audio

Audio Codec	Realtek ALC892
Audio Channels	8
Audio Features	HD Audio, Absolute Pitch 192 KHz/ 24-bit True BD Lossless Sound, DTS Ultra PC II, DTS Connect, BD Audio Layer Content Protection, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Graphics

Multi GPU Support	Yes, NVIDIA Quad-GPU SLI Technology, AMD Quad-GPU CrossFireX Technology
External Graphics Card Support	Yes
Integrated Graphics card	Yes

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2, 2.0
PCIe x16 Slots, Generation	1, 3.0, 2.0

Internal I/o Headers

ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
SATA 6 Gb/s Headers	6
USB 2.0 Headers	3
USB 3.0 Headers	1
Fan Headers	1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x DRCT Header, 1 x S/PDIF Out Header, 1 x TPU Switch, 1 x 24-pin EATX Power Connector, 1 x DirectKey Button, 1 x System Panel (Q-Connector), 1 x MemOK! Button, 1 x EPU Switch, 1 x Clear CMOS Jumper, 1 x CPU OPT Fan Connector

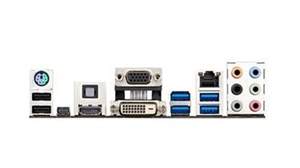

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4, Intel Z87
VGA/D Sub Ports	1
DVI Ports	1
Audio I/O Channels	6
HDMI Ports	1
RJ-45 Ethernet Jacks	1
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
PS/2	1

General Features

Overclocking	Asus C.P.R.(CPU Parameter Recall)
OS Support	Windows: 7, 8
Bundled Software	Anti-virus Software (OEM Version Only)
Support CDs	Drivers, Asus Utilities, EZ Update
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS, Asus EZ Flash 2, Asus CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen, F3 Shortcut Functions and Asus DRAM SPD (Serial Presence Detect) Memory Information
Features	Supports Intel 22 nm CPU, Fan Xpert 2 Fan Control, Supports Intel Extreme Memory Profile (XMP), DMI 2.7, PXE, Probe II Sense, Asus 5X Protection, Supports Upto 3 Displays Simultaneously, Stainless Steel Back I/O, WOL by PME, Remote GO!, Supports Intel Dynamic Storage Accelerator, Manageability: WfM ...View More Supports Intel 22 nm CPU, Fan Xpert 2 Fan Control, Supports Intel Extreme Memory Profile (
Advanced Technologies	Supports Intel Turbo Boost Technology 2.0, Intel Smart Response Technology, Intel Smart Connect Technology, Intel Rapid Start Technology, Asus USB 3.0 Boost Technology
Advanced Features	Asus Dual Intelligent Processors 2 with DIGI+ VRM, Asus 5X Protection, Asus EPU, Asus Digital Power Design, Asus Exclusive Features, Asus Quiet Thermal Solution, Asus EZ DIY, Asus Q-Design

Dimensions

223.5 x 305 mm

Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
