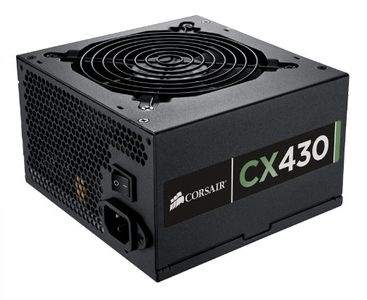

Corsair CX430-80 Plus 430W PSU

Corsair CX430-80 Plus 430W PSU Share on

₹5378.00
amazon ₹5378.00 Go to store

Latest Power Supplies

Antec Power Supplies - Antec BP350S Power Supply
Antec Power Supplies

Antec BP350S Power Supply

₹2500.00
Corsair Power Supplies - Corsair CX500M 500W PSU
Corsair Power Supplies

Corsair CX500M 500W PSU

₹28526.00
Corsair Power Supplies - Corsair CS650M 650W PSU
Corsair Power Supplies

Corsair CS650M 650W PSU

₹8792.00
Antec Power Supplies - Antec VP450P I 450W SMPS
Antec Power Supplies

Antec VP450P I 450W SMPS

₹2980.00
Huntkey Power Supplies - Huntkey CP450H 450W Power Supply
Huntkey Power Supplies

Huntkey CP450H 450W Power Supply

₹1500.00
Cooler Master Power Supplies - Cooler Master CM 350 Plus 350W Power Supply Unit
Cooler Master Power Supplies

Cooler Master CM 350 Plus 350W Power Supply Unit

₹2750.00
Corsair Power Supplies - Corsair TX750M (CP-9020131-UK) 750W 80 PLUS Gold Certified PSU
Corsair Power Supplies

Corsair TX750M (CP-9020131-UK) 750W 80 PLUS Gold Certified PSU

₹11219.00
Antec Power Supplies - Antec VP650P 650W SMPS
Antec Power Supplies

Antec VP650P 650W SMPS

₹4599.00
Circle Power Supplies - Circle 400W APFC SMPS Power Supply
Circle Power Supplies

Circle 400W APFC SMPS Power Supply

₹1350.00
Zebronics Power Supplies - Zebronics ZEB-PS37 450W SMPS Power Supply
Zebronics Power Supplies

Zebronics ZEB-PS37 450W SMPS Power Supply

₹945.00

Corsair CX430-80 Plus 430W PSU Specifications

In The Box

Sales Package SMPS Unit, Cables, User Guide

General

Brand Corsair
Power Output 430 W
Series Builder Series
ATX & EPS Version ATX 12V v2.3
Model Name CX430
Power Rail 1 x 12V Power Rails

Other Features

Additional Features Extra Long Fully-sleeved Cables

Power

Power Factor Correction (PFC) Active PFC with Value of 0.99
Input Voltage 1 90 - 264 V
Efficiency 80 %
Mean time between failures (MTBF) 1,00,000 hr

Maximum Current

Current at DC Output of +3.3 V 20 A
Current at DC Output of +5 V 20 A
Current at DC Output of +12 V 28 A
Current at DC Output of -12 V 0.8 A
Current at DC Output of +5 V sb 3 A

Connectivity

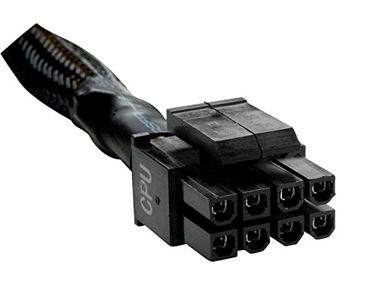

CPU 2 CPU Connector

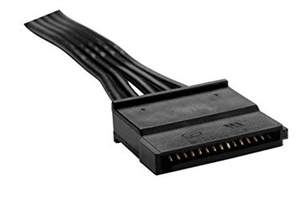

SATA 4 SATA Cables
Floppy 1 Floppy Connector with 4 pins

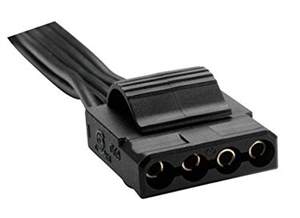

Peripheral 3 Peripheral Connector with 4 pins

Features

Protection Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP)
Safety Standards UL, CUL, CE, CB, FCC Class B, TUV, CCC, C-Tick
Certification 80 Plus
Fan Type 1 x 120 mm Low Noise Level Fan

Dimensions

Width x Height x Depth 150 x 86 x 140 mm
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
