Brand | Corsair |
Power Output | 650 W |
Series | Enthusiast Series |
ATX & EPS Version | ATX 12V v2.31 and EPS 12V v2.92 |
Model Name | Modular TX650M |
Power Rail | 1 x 12V Power Rails |
Part Number | CP-9020002-NA |
Additional Features | Complies with the European Union ErP Directive |
Power Factor Correction (PFC) | Active PFC with Value of 0.99 |
Input Voltage 1 | 90 - 264 V |
Efficiency | 85 % |
Mean time between failures (MTBF) | 1,00,000 hr |
Current at DC Output of +3.3 V | 30 A |
Current at DC Output of +5 V | 30 A |
Current at DC Output of +12 V | 54 A |
Current at DC Output of -12 V | 0.8 A |
Current at DC Output of +5 V sb | 3 A |
SATA | 8 SATA Cables |
Floppy | 2 Floppy Connector with 4 pins |
Peripheral | 8 Peripheral Connector with 4 pins |
Protection | Over Voltage Protection (OVP), Over Current Protection (OCP), Under Voltage Protection (UVP), Short Circuit Protection (SCP) |
Safety Standards | cTUVus, CE, CB, FCC Class B, TUV, CCC, C-tick |
Certification | 80 Plus Bronze |

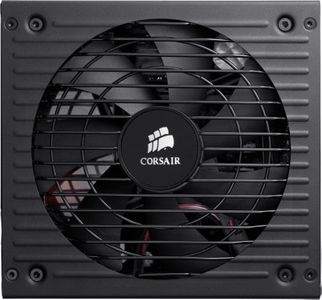

Fan Type | 1 x 140 mm Double Ball Bearing, Ultra Quiet, Excellent Airflow, Exceptionally Low Noise Levels, Varying Fan Speed in Response to Temperature |
Temperature | to 50 °C (Operating Temperature) |
Weight | 2.4 kg |
Width x Height x Depth | 150 x 86 x 160 mm |
