VPN | Virtual Server, DMZ (Port Forwarding), IPSec, L2TP and PPTP Pass-through |
Other Features | Routing Features: Routing (TCP, IP, UDP, ARP, ICMP), RIP v1 (RFC1058), RIP v2 (RFC1723), IGMP Snooping v1, v2, v3, IGMP Proxy (V1, V2), Management: Web Based Configuration, Telnet Management, Command Line Interpreter (CLI), Web Page, X-Modem, FTP, TFTP Firmware Upgrade, Remote Management, Diagnostic...View More Routing Features: Routing (TCP, IP, UDP, ARP, ICMP), RIP v1 (RFC1058), RIP v2 (RFC1723), I |
LAN | RJ-45 |
WAN | RJ-45 |
Antennae | External |
Antennae Capacity | High Gain 5 dBi Antenna |
Number of Antennae | 1 |
Number of LAN ports | 1 |
Number of WAN ports | 1 |
Weight | 244 g |
Depth | 166 mm |
Width | 124 mm |
Height | 29 mm |
Type | Wireless With Modem |
Brand | Digisol |

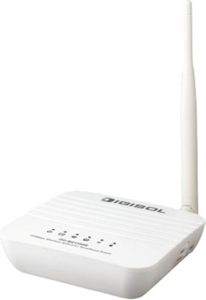

Model | 150 Mbps Wireless ADSL 2/2+ Broadband Router |
Controls | WPS/WLAN Push Button, Reset Button |
In The Box | Router, Adapter, Manual |
Part Number | DG-BG1100N |
LED Indicator | LAN, WLAN, Power, Internet, DSL, WPS |
Frequency | 2488 MHz |
Temperature | Operating: 0DegC - 40DegC, Storage: -20DegC - 70DegC degree C |
Operating Humidity | Operating: 10 % - 95 % Non-condensing, Storage: 5 % - 95 % Non-condensing |
Power Supply | Input: AC 100 - 240 V, 50-60 Hz, Output: DC 12 V, 0.5 A |
Firewall | NAT, PAT, IP Filtering, Stateful Packet Inspection (SPI), Mac Address Filtering, Application Filtering, URL Filter |
Encryption | 64/128-bit WEP, WPA-PSK, Support WPS, WPA2-PSK, WPA |
Other Security Features | DHCP Server / Relay, DHCP Client (WAN Port), PPPoE Pass-through (Bridge Interface) |
Standard IEEE | IEEE 802.11b, IEEE 802.11n, IEEE 802.11g, IEEE 802.1D Mac Bridge |
LAN/WAN | 10/100 Mbps |
Wireless Speed | 150 Mbps |
Operating System | 2000, Windows: XP, Vista, 7 |
