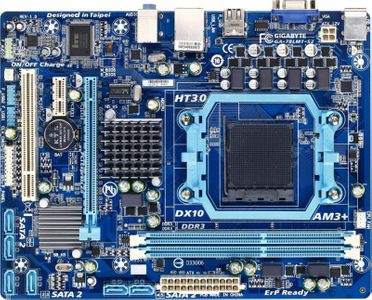

Gigabyte GA-78LMT-S2 Motherboard

Name: Gigabyte GA-78LMT-S2 Motherboard
Brand: Gigabyte Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

Gigabyte GA-78LMT-S2 Motherboard-thumb-1

Gigabyte GA-78LMT-S2 Motherboard-thumb-2

Gigabyte GA-78LMT-S2 Motherboard Share on

Gigabyte Motherboards

₹8499.00

₹8499.00

Go to store

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

Gigabyte GA-78LMT-S2 Motherboard Specifications

In The Box

Sales Package

Motherboard, User Manual and Driver CD

General

Brand	Gigabyte
Model ID	GA-78LMT-S2

Essentials

Form Factor	Micro-ATX
Socket Type	AM3+
Compatible Processors	AMD Phenom II X4, AMD Athlon II X3, AMD Athlon II X2, AMD Athlon II 170u, AMD FX-8100, AMD FX-4300, AMD FX-4100, AMD Phenom II X3, AMD Phenom II X2, AMD Sempron 145, AMD FX-6120, AMD Sempron 140, AMD FX-6300, AMD FX-4150, AMD Athlon II X4, AMD Athlon II 160u, AMD FX-6100, AMD Phenom II X6
Chipset	AMD 760G, AMD SB710
Chipset Manufacturer	AMD

Connectivity

Ethernet Controller	Realtek Gigabit Ethernet
Ethernet Features	10/100/1000 Mbit

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 GB DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333+ (O.C) MHz, 800 MHz

Storage

SATA 3 Gb/s	AMD SB710 Chipset
RAID Controller	AMD SB710 Chipset
RAID Configurations	0, 1, 10, JBOD

Audio

Audio Codec	Realtek HD
Audio Channels	7.1
Audio Features	High Definition Audio

Graphics

Integrated Graphics card

Yes, ATI Radeon HD 3000

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	2.0, 1
PCIe x16 Slots, Generation	1, 2.0

Internal I/o Headers

SATA 3 Gb/s Headers	6
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
USB 2.0 Headers	2
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x 4-pin ATX 12 V Power Connector, 1 x Clearing CMOS Jumper

Back Panel Ports

USB 2.0 Ports, Controller	4
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2

General Features

Bundled Software	Norton Internet Security (OEM Version)
Hardware Monitoring	System Voltage Detection, CPU/System Temperature Detection, CPU/System Fan Speed Detection, CPU Overheating Warning, CPU/System Fan Fail Warning, CPU/System Fan Speed Control
OS Support	Vista, Windows: XP, 7
BIOS	1 x 16 Mbit Flash, Use of Licensed AWARD BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Features	iTE I/O Controller Chip, Power Failure Protection, High Temperature Protection, PCI Express 2.0 Graphics Interfaces for ATI Hybrid CrossFireX Support, 3 + 1 Phase VRM, ErP Lot6 Support, Humidity Protection, Electrostatic Protection, Gigabyte Ultra Durable 4 Classic, EC AOD-ACC Support, EasyTune6, Sp...View More iTE I/O Controller Chip, Power Failure Protection, High Temperature Protection, PCI Expres
Advanced Technologies	On/Off Charge Technology, HyperTransport 3.0 Technology, Hybrid EFI Technology, Gigabyte Ultra Durable Technology
Advanced Features	Support for BIOS, Support for Q-Flash, Support for Xpress BIOS Rescue, Support for Download Center, Support for Xpress Install, Support for Xpress Recovery2, Support for EasyTune, Support for Smart Recovery, Support for Auto Green, Support for On/Off Charge, Support 3TB+ Unlock, Support for Q-Share

Dimensions

188 x 244 mm

Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
