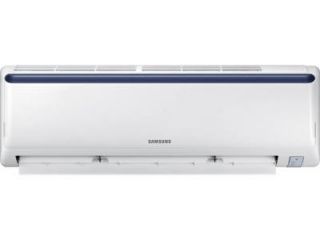

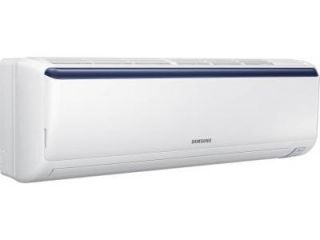

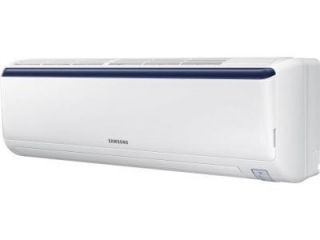

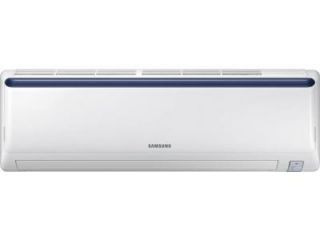

Title | Samsung AR18NV3JLMC 3S 1.5 Ton Inverter Split AC |
Star Rating | 3 |
Brand | Samsung |
AC Type | Split |
Capacity in Tons | 1.5 Ton |
Model No | AR18NV3JLMC 3S |
Inverter Technology | Yes |
Operating Current | 7.8 Ampere |
Cooling Capacity | 5000 Watts |
Power Input | 1780 Watt |
EER | 2.81 W/W |
Power Requirements | AC 220 - 240 V, 50 Hz,Single |
Moisture Removal | 2 Litres/Hr |
Installation Details | Installation of Air-conditioner is charged extra to customer at the time of installation and needs to be paid directly to the service engineer. |
Services Included In Basic Installation | Standard Installation of Split AC Covers only Split AC:- 1.Drilling of hole in Brick wall for taking out the pipes 2.Fixing hole sleeve & Cap 3.Fixing the Indoor and Outdoor Unit. 4.Connecting Indoor and Outdoor units using Standard Kit provided by Manufacturer (at an additional cost, unless specified otherwise). Wrapping the pipe with seasoning tape. 5.Connection to Stabilizer or Power point in the range of Power Cord Provided by Manufacture. 6.Temperature/Performance Check & Demo and Maintenance tips filling the details in warranty card. Not covered in installation:- 1.Out Door Unit Stand. 2.Extra copper wire if any. 3.Drain Pipe extension if any. 4.Plumbing and Masonry Work. 5.Wiring extension from Meter to site, Power point/MCB fitting and any other electrical work,Carpentry work. 6.Dismantling/Shifting of Old AC`s Masonry, Core Cutting Fabrication and Electrical |
Installation Warranty | 1 Year on Product & 5 Years on Compressor |
Color | White |
Compressor | Outdoor Unit (Compressor Type) 8-POLE |
Control Console | Remote Control |
Main Unit Condenser Coil | Alloy |
Refrigerant | R 410A |
Other Body Design Features | Outdoor Unit (Anti-Corrosion Fin) |
Energy Save | Yes |
Fuzzy Logic | No |
Auto Clean | Yes |
Timer | Yes, On-Timer: Yes, Off-Timer: Yes |
Hot & Cold | No |
Auto Restart | Yes |
Other Convenience Features | Beep On/Off, Display On/Off, 24-Hour Timer |
Self Diagnosis | Yes |
Front Panel Display | Yes |
Additional Features | Piping Length (Max, m):20, Piping Height (Max, m):12, SVC Valve (Liquid (ODxL)):6.35, SVC Valve (Gas (ODxL)):12.7, Refrigerant (Charging, kg):0.74 |
Jet Cool | No |
Anti Bacteria Filter | Yes |
Dual Protection Filter | No |
Virus and Allergy Safe Filter | No |
Active Carbon Filter | No |
Triple Filter | No |
Catechin | No |
Indoor Noise Level | Low: 26 dB, High: 45 dB |
Outdoor Noise Level | High: 53 dB |
Fan Speed Steps | 4 |
Selectable Swing | Yes |
Speed Setting | Yes |
Auto Air Swing | Auto Air-Swing (Up-Down) |
Other Features | Air Circulation (Cooling, ㎥/min):16.2, Air Direction Control (Left/Right):Manual |
Cool Mode | Yes |
Dehumidification | Yes |
Dry Mode | No |
Sleep Mode | Yes |
Turbo Mode | Yes |
Other Modes | 2 Step Cooling, Fast Cool, Comfort Cool, Good Sleep, Single User Mode, Fan Mode, Quiet Mode |
