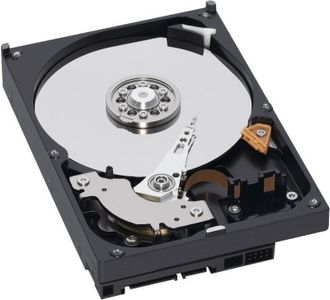

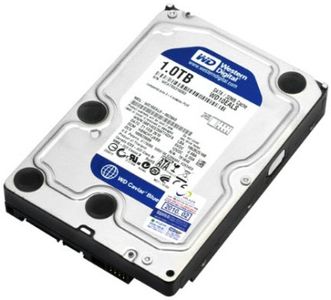

WD Caviar Blue (WD10EALS) 1TB Desktop Internal Hard Disk Specifications
General
| Brand |
WD |
| Series |
Caviar Blue |
| Model ID |
WD10EALS |
Power
| Power Consumption |
6.8 W (Read/Write), 0.7 W (Standby/Sleep) |
| Standard Input Voltage |
12 V DC |
| Idle |
6.1 W |
| Maximum Start Current |
2.8 A |
Drive Configuration
| Form Factor |
3.5 inch |
| Device |
Desktop |
| Device Type |
3.5 inch HDD |
| Drive Capacity |
1 TB |
| Spin Speed |
7200 rpm |
| Interface |
SATA 3.0 Gbps |
| Transfer Rate |
1008 Mbps |
| Reliability |
300000 (Load/Unload Cycles) |
| Cache Memory |
32 MB |
| Data Transfer Rate (To/From Buffer) |
1008 Mbps |
| I/O Transfer Rate |
2400 Mbps |
| Data Transfer Rate (To/From Host) |
3000 Mbps |
| Non-recoverable Read Error |
1 per 10^14 |
Dimensions
| Dimensions |
101.6 x 26.1 x 147 mm |
| Weight |
690 g |
Operating Conditions
| Operating Temperature |
0DegC to 60DegC |
| Non-Operating Temperature |
-40DegC to 70DegC |
| Shock Tolerance |
30 G for 2 ms (Operating), 300 G for 2 ms (Non-Operating) |
