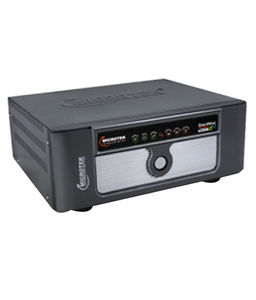

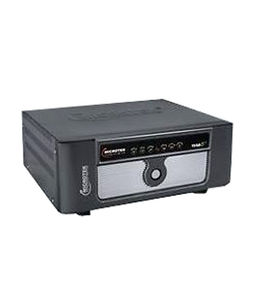

Microtek UPS E2-625 Digital Inverter

Microtek UPS E2-625 Digital Inverter Share on

N/A

Detailed Specifications

Key Feature

Model ID MICROTEK UPS E2-625
Brand Microtek

Warranty Details

Warranty Service Type , ,
Duration 2 Years

Under Voltage & Under Voltage Restoration

Regulated UPS mode 180 +/- 5 V
Unregulated UPS mode 100 +/- 10 V & 115 +/- 10 V

General Details

Inverter Type Modified Sine Wave Inverter
Volt Ampere Rating Below 1000VA
Recharge Time 10-12 Hrs.
Battery Type 12 V BATTERY
Frequency (Mains Mode) Same as Input (45-55 Hz.)
Output Voltage (UPS Mode) 200V-230V 10%
Frequency (UPS Mode) 50 Hz 0.1 Hz
Protection Battery Deep Discharge, Reverse Polarity, DC Overvoltage
Voltage (Mains Mode) 100V~300V (Wide input voltage range), 180V~260V (Normal input voltage range)

Other Features

Visual Indicators Mains On, UPS On, Switch Status, Smart Charge, Overload/ Short Circuit Trip, Charger Fuse Blown, Battery Low Trip and No Load Shutdown
Technology Micro Controller Based Design
Battery Charging Battery charging commences even at as low as 120 Volt Mains voltage
Switching from Mains to UPS & from UPS to Mains Automatic
Output Waveform on UPS Mode TPZi Waveform (TRAPE ZOIDAL WAVEFORM)
Battery Charging Current Constant Charging Approx 10% of The Rated Battery Current in AH
Audio Alarms Mains fail, Charger fuse blown, battery low and no load shutdown
Charger Constant Current, Constant Wattage

Led Display

Mains On Yes
Battery Charged GREEN LED STUDY
Battery Low GREEN LED WITH BUZZER
No Load Shut Down Red
Charging Fuse Blown Mains On (Continuos) with Smart Charge LED (blinking)
Overload Red
Low Battery (Pre Alarm) UPS ON+LOW BATTERY LED BLINKS
Short Circuit OVERLOAD BLINKING
Smart Charge Red (Along with Mains On LED
Switch ON White

Alarms

Low Battery Trip Beeps Continuously for 10 seconds
Charging Fuse Blown Beeps Continuously for 10 seconds
Overload Beeps Continuously for 10 seconds
Low Battery (Pre Alarm) Beeps every 10 seconds
Mains to UPS Beeps every 2 seconds for 5 times
No Load Shut Down Beeps Continuously for 10 seconds
Short Circuit Beeps Continuously for 10 seconds

Power & Operating Requirements

Operating Temperature 0-45 DegreeC (32-113 DegreeF)
Humidity 0-95 % RH non -condensing
Storage Temperature 0-45 DegreeC (32-113 DegreeF)

What is in the Box

Items in the Box Warranty Card
