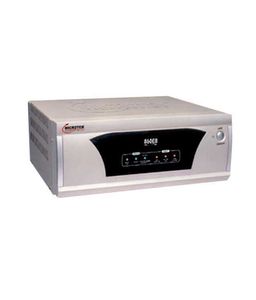

Microtek UPS EB 860VA Inverter

Microtek UPS EB 860VA Inverter Share on

N/A

Detailed Specifications

Warranty Details

Duration 2 Years

Key Feature

Model ID UPSEB 860 VA

General Details

Inverter Type Modified Sine Wave Inverter
Volt Ampere Rating Below 1000VA
Recharge Time 10-12 Hrs.
Battery Type 12V/120AH-150AH Lead Acid Type
Frequency (Mains Mode) Same as Input (45-55 Hz.)
Output Voltage (UPS Mode) 200V-230V 10%
Frequency (UPS Mode) 50 Hz 0.1 Hz
Protection Yes,Equipped with HCLC (High Cut/Low Cut) Technology that provides complete and constant protection to your appliances in case of any irregularities and disturbances in the grid supplyn and thereby protecting expensive and sensitive equipment like TVs, ho
Voltage (Mains Mode) 100V~300V (Wide input voltage range), 180V~260V (Normal input voltage range)

Under Voltage & Under Voltage Restoration

Regulated UPS mode 180 +/- 5 V

Other Features

Visual Indicators Mains On, UPS On, Switch Status, Smart Charge, Overload/ Short Circuit Trip, Charger Fuse Blown, Battery Low Trip and No Load Shutdown
Switching from Mains to UPS & from UPS to Mains Automatic
Mode Auto holiday mode preserves battery charge while you are away from home
Charger Power Factor Controlled Boost Technology

Alarms

Low Battery Trip Beeps Continuously for 10 seconds
Charging Fuse Blown Beeps Continuously for 10 seconds
Low Battery (Pre Alarm) Ups On+Low Battery Led Blinks
Mains to UPS Beeps every 2 seconds for 5 times

Led Display

Mains On Yes
Battery Charged Mains On LED steady
Battery Low Red
No Load Shut Down Red
Charging Fuse Blown Mains On (Continuos) with Smart Charge LED (blinking)
Overload Yes
Low Battery (Pre Alarm) UPS ON+LOW BATTERY LED BLINKS
Smart Charge Red (Along with Mains On LED
UPS On Red
