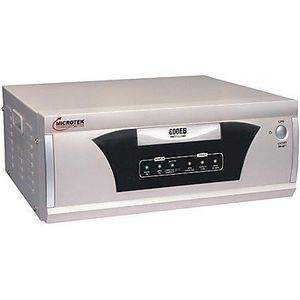

Microtek UPS-EB 600VA Inverter

Microtek UPS-EB 600VA Inverter Share on

₹3050.00

Latest Inverters & Batteries

Microtek Inverters & Batteries - Microtek UPS E2-625 Digital Inverter
Microtek Inverters & Batteries

Microtek UPS E2-625 Digital Inverter

N/A
Microtek Inverters & Batteries - Microtek UPS EZ 600 Inverter
Microtek Inverters & Batteries

Microtek UPS EZ 600 Inverter

N/A
Microtek Inverters & Batteries - Microtek UPS E2-1025 Digital Inverter
Microtek Inverters & Batteries

Microtek UPS E2-1025 Digital Inverter

N/A
Exide Inverters & Batteries - Exide Stan Red500+ 150AH Battery
Exide Inverters & Batteries

Exide Stan Red500+ 150AH Battery

N/A
Exide Inverters & Batteries - Exide Inverter Plus (FEI0-IN2000PLUS) 200AH Battery
Exide Inverters & Batteries

Exide Inverter Plus (FEI0-IN2000PLUS) 200AH Battery

N/A
Luminous Inverters & Batteries - Luminous Eco Watt 1500 VA Inverter
Luminous Inverters & Batteries

Luminous Eco Watt 1500 VA Inverter

N/A
Luminous Inverters & Batteries - Luminous Inverlast Neo IL 18039 150Ah Inverter Battery
Luminous Inverters & Batteries

Luminous Inverlast Neo IL 18039 150Ah Inverter Battery

N/A
Luminous Inverters & Batteries - Luminous Inverlast IL 16039 135Ah Flat Plate Battery
Luminous Inverters & Batteries

Luminous Inverlast IL 16039 135Ah Flat Plate Battery

N/A
Microtek Inverters & Batteries - Microtek UPS EB 860VA Inverter
Microtek Inverters & Batteries

Microtek UPS EB 860VA Inverter

N/A
Exide Inverters & Batteries - Exide Little Champ FLC0-LC150IN Battery
Exide Inverters & Batteries

Exide Little Champ FLC0-LC150IN Battery

N/A

Microtek UPS-EB 600VA Inverter Specifications

Key Feature

Model ID MICROTEK 600 VA
Brand Microtek

Warranty Details

Duration 2 Years
Warranty Service Type , ,

General Details

Inverter Type Modified Sine Wave Inverter
Recharge Time 10-12 Hrs.
Volt Ampere Rating Below 1000VA
Battery Type 12 V BATTERY
Frequency (Mains Mode) Same as Input (45-55 Hz.)
Output Voltage (UPS Mode) 200V-230V 10%
Frequency (UPS Mode) 50 Hz 0.1 Hz
Protection Battery Deep Discharge, Reverse Polarity, DC Overvoltage
Voltage (Mains Mode) 100V~300V (Wide input voltage range), 180V~260V (Normal input voltage range)

Under Voltage & Under Voltage Restoration

Regulated UPS mode 180 +/- 5 V
Unregulated UPS mode 100 +/- 10 V & 115 +/- 10 V

Other Features

Visual Indicators Mains On, UPS On, Switch Status, Smart Charge, Overload/ Short Circuit Trip, Charger Fuse Blown, Battery Low Trip and No Load Shutdown
Technology Micro Controller Based Design
Switching from Mains to UPS & from UPS to Mains Automatic
Output Waveform on UPS Mode TPZi Waveform (TRAPE ZOIDAL WAVEFORM)
Audio Alarms Mains fail, Charger fuse blown, battery low and no load shutdown
Battery Charging Current Constant Charging Approx 10% of The Rated Battery Current in AH
Charger Constant Current, Constant Wattage

Alarms

Low Battery Trip Beeps Continuously for 10 seconds
Charging Fuse Blown Beeps Continuously for 10 seconds
Low Battery (Pre Alarm) Beeps every 10 seconds
Overload Beeps Continuously for 10 seconds
Mains to UPS Beeps every 2 seconds for 5 times
No Load Shut Down Beeps Continuously for 10 seconds
Short Circuit Beeps Continuously for 10 seconds

Led Display

Mains On Yes
Battery Charged GREEN LED STUDY
Battery Low GREEN LED WITH BUZZER
No Load Shut Down Red
Charging Fuse Blown Mains On (Continuos) with Smart Charge LED (blinking)
Overload Red
Low Battery (Pre Alarm) UPS ON+LOW BATTERY LED BLINKS
Short Circuit OVERLOAD BLINKING
Smart Charge Red (Along with Mains On LED
Switch ON White

Power & Operating Requirements

Humidity 0-95 % RH non -condensing
Operating Temperature 0-45 DegreeC (32-113 DegreeF)
Storage Temperature 0-45 DegreeC (32-113 DegreeF)

What is in the Box

Items in the Box Warranty Card
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
